Exposed Fastener System Metal Panels

CD 2000

APPLICATION: Roofing, Siding, Buildings

STEEL THICKNESS: Ultra 0.0185″ | Prime 0.0150″

OVERALL COVERAGE WIDTH:  36″

PAINT THICKNESS

  • Top coat paint: .70 mil
  • Top coat primer: .30 mil
  • Bottom coat backer: .35 mil
  • Bottom coat primer: .35 mil

TOTAL THICKNESS: Ultra 0.0202″ | Prime 0.0167″

RUST PROTECTANT SUBSTRATE:  Galvalume AZ50 or Galvanized G90

STEEL STRENGTH: 80,000 PSI min

PAINT SYSTEM:  SMP

WARRANTY

  • Lifetime limited paint adhesion
  • 30-yr. chalk and fade
  • 20-yr. Galvalume perforation
  • More info here
CD 2000 Specifications and Line Drawing

Central States offers a variety of educational tools for your use. We recommend reviewing the below documents when making your decision to buy CD 2000.

CD 2000 Product Sheet
Product Guide

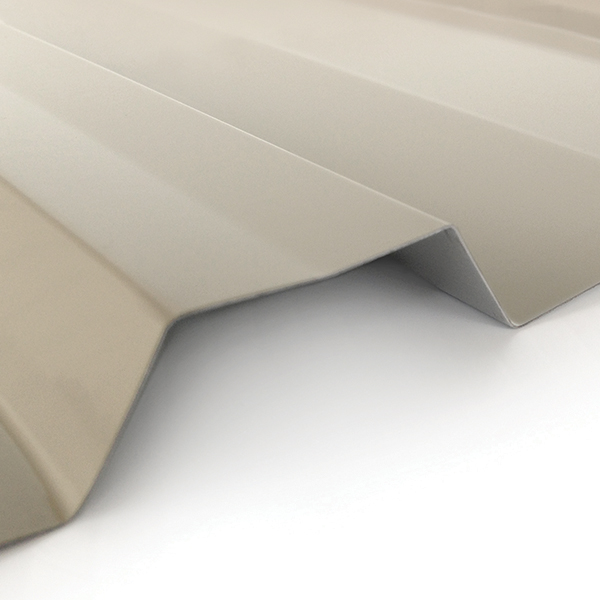

The board-and-batten appearance of CD 2000® provides an attractive and cost-effective option for a variety of metal siding and roofing residential, agricultural, and light commercial uses. We offer three models of CD 2000 to fit any budget: Standard, Prime, and Ultra.  Prime and Ultra panels come with CentralGuard.

CD 2000 is available in Region 6 – Hartford, SD warehouse.

  • CD 2000 comes in 26 gauge and 29 gauge with a 36″ coverage width.
  • Wide fastening surfaces make fastening quick and easy.
  • Siphon groove prevents capillary action and stays watertight.
  • Employs a drain channel that minimizes leaks from wind, rain, and snow.
  • Matching trims and accessories are available.
  • Available in over 22 colors.

The CD 2000 metal siding and roofing panel comes in a multitude of popular colors to complement your project and other finish materials. Find the color that best suits your needs from the chart below.

Contact your sales representative for custom color options.

Color Charts

Our products have been rigorously tested to make sure that they meet the highest standards of quality. We seek to meet, or exceed, the industry standards by focusing on quality control checks to ensure a consistent, reliable product. The testing documents below showcase testing and approvals for CD 2000.

Approvals
UL2218 UL Approval, Impact Resistance, Class 4
UL790 UL Approval, Fire Resistance, Class A

When you buy Central States metal roofing, siding, or buildings, you can be assured that your new investment will look great for a lifetime. Our warranties cover you in unexpected times. We offer a variety of warranties, depending on the material and panel profile you choose.

CD 2000 comes with a Limited Lifetime warranty helping protect your investment in home or business.

MORE INFORMATION ON WARRANTIES.

Central States has taken the guesswork out of selecting a panel quality with our CentralGuard® system – our specific combination of everything that goes into making the highest-quality metal panels. The CentralGuard name guarantees that you have the best protection and a lifetime paint warranty.

Choose CD 2000 for the ultimate protection from rain and snow, plus the perfect balance of fade protection, rust blocking, and dent resistance.

Download these helpful tools to learn more:

Layers of Protection
Fade, Rust, Dent
